UC6500-NMC:
Embedded software on the NMC
1* 10/100/1000Base-T RJ45 Ethernet management port
1* 100Base-FX/1000Base-X SFP Ethernet management port
1 * CONSOLE port
Supports CLI based, Web-based and SNMP management options

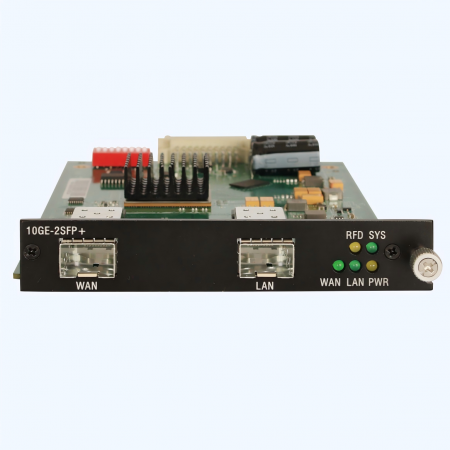

UC6500-10GE- 2SFP+:
2*SFP+ports
10G Ethernet Media Converter
Support1GE/2.5GE/5GE/10GE Ethernet Protocol
Support standalone
Support Remote Management
UC6500-10GE- 3SFP+:
3*SFP+ports,with APS function
Switch-over time <50ms 10G Ethernet Media Converter
Support 1GE/2.5GE/5GE/10GE Ethernet Protocol
Support standalone
Support Remote Management
UC6500-10GE- MUX8:
8* 100Base-FX/1000Base-X SFP ports
2*10GE SFP+ports,with APS function
Switch-over time <50ms
10G Ethernet Multiplexer
UC6500-T-100G-1Q1C:
1*QSFP28 port,1*CFP2 port 100G 3R Transponder
Protocol Transparent
Support 10GE/25GE/40GE/100GE
Support CPRI Option8,9,10 Support OTU4

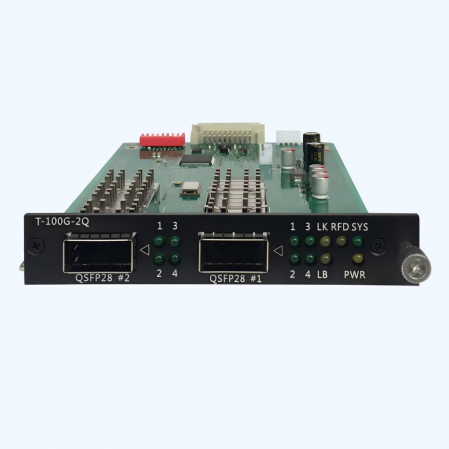

UC6500-T-100G-2Q:
2*QSFP28 port
100G 3R Transponder
Protocol Transparent Support
10GE/25GE/40GE/100GE
Support CPRI Option8,9,10 Support OTU4
Support 100G SR4/CWDM4/LR4 conversion to DR1/FR1/LR1
UC6500-2SFP+:
2*SFP+port
10G 3R Transponder
Protocol Transparent
Support 1GE/2.5GE/5GE/10GE
Support OC-24/48/96/192, STM-16/64
Support CPRI Option2,3,5,7,8

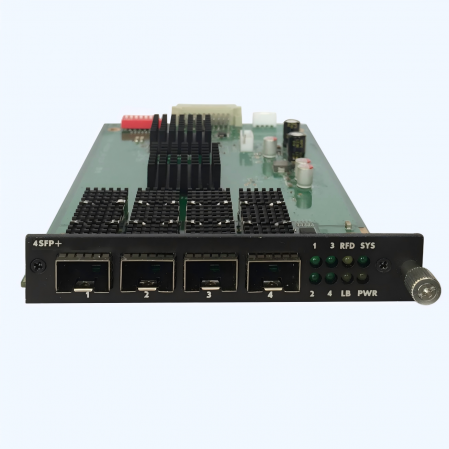

UC6500-4SFP+:
4*SFP+port
APS option,Switch-over time <50ms
10G 3R Transponder
Protocol Transparent
Dual-Channel,APS,Monitor Mode
Support 1GE/2.5GE/5GE/10GE
Support OC-24/48/96/192, STM-16/64
Support CPRI Option2,3,5,7,8
UC6500-OP:
Dual Fiber
1+1 Protection
Switch-over time<20ms
Insertion Loss:TX≤4dB RX ≤1.5dB
· Compliance with Carrier Grade Standards, all the features of a carrier class
· Flexible mix of services from 100Mb to 100G including Ethernet Connectivity, Storage, Video, TDM Service, CPRI，Fits multiple fiber network applications
· Protocol transparent (Ethernet, SDH STM16/STM64, OTUx/ OTUxe, Fiber Channel, OBSAI, CPRI /eCPRI) and low latency, can be used in data network, storage area network (SAN), mobile fronthaul network, video network, OTN etc.
· Simple to Install, configuration and maintenance
· Pay-as-you grow architecture, Scalable, Flexible for future growth
· Transparent, Ultra Low latency for high bandwidth applications
· Dual redundant pluggable AC/DC PSU and FAN unit
· All products are Green technology with low power consumption compliant with international standards
· Web based, 3rd party SNMP and EMS/NMS management solutions
· No extra licensing or server cost
· 3U 19” 22-slot chassis with 1 slot for Network Management Card (NMC), 17 slots for Line cards, 2 slots for power modules and 2 slots for fan modules
· 1U 19” 10-slot chassis with 1 slot for Network Management Card (NMC), 5 slots for Line cards, 2 slots for power modules and 2 slots for fan modules
· 2-slot mini chassis with 1 slot for Network Management Card (NMC) and 1 slot for Line card
· 3-slot mini chassis with 1 slot for Network Management Card (NMC) and 2 slot for Line card
· Various line cards, includes MC, 2R/3R Transponder, OAPS
· Single fiber to dual fiber conversion; Multi-mode fiber to single-mode fiber conversion; wavelength conversion
· Various SFP/SFP+/QSFP+/QSFP28/CFP2 options support Digital Diagnostic Monitoring Interface(DDMI)
