Parameter |
Unit |
Specification |
|
Configuration |
|
Port 1～Port 2～Port 3 |
|
Operating Wavelength |
nm |
1310/1550/1625±30 |
|
Typical Peak Isolation |
dB |
50 |
|
Minimum Isolation |
dB |
40 |
|
Typical Insertion Loss |
dB |
0.8 |
|
Maximum Insertion Loss |
dB |
1.0 |
|
Return Loss |
dB |
50 |
|
Cross Talk |
dB |
50 |
|
PDL |
dB |
0.15 |
|
Polarization Mode Dispersion |
ps |
0.1 |
|
Optical Power |
W |
5 |
|
Fiber Type |
|
Corning SMF-28e Ultra |
|
Operating Temperature |
℃ |
-5～+70 |
|
Storage Temperature |
℃ |
-40～+85 |
|

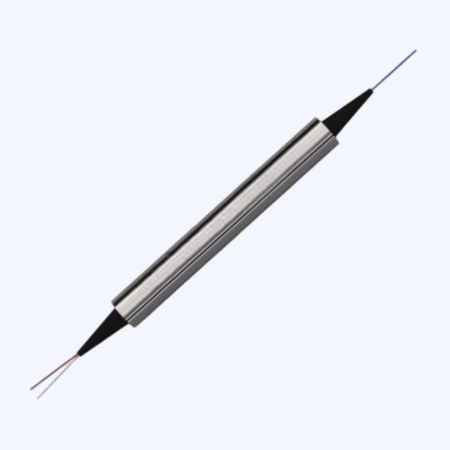

Package Dimensions for Steel Tube |
mm |
φ5.5*L50 |
Note:
1. Calculation of the insertion loss doesn't include connectors', each connector added will need extra 0.15 IL.
lLow Insertion Loss
lHigh Isolation
lCompliant with IEC 62077
lAntenna System
lEquipment Isolation
