AAWG Module 75Hz

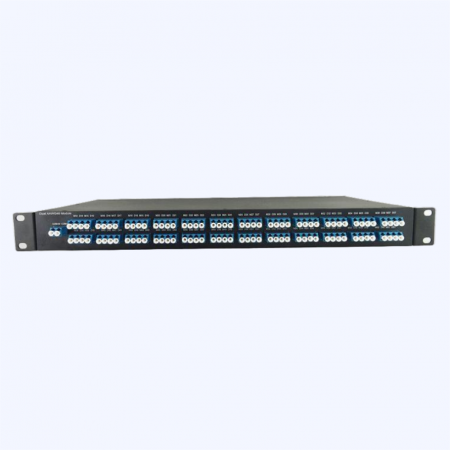

Athermal AWG Module, DWDM Module, 75GHz channel spacing, Single fiber Bi-Directional, 64 wavelengths, starting wavelength ITU ch-61 1528.77nm, optional MON(monitoring) port, 19" 1RU rack-mount chassis, LC/UPC receptacle, flat top, -5℃~65℃
Inquire Now
Product Overview
Athermal AWG Module, DWDM Module, 75GHz channel spacing, Single fiber Bi-Directional, 64 wavelengths, starting wavelength ITU ch-61 1528.77nm, optional MON(monitoring) port, 19" 1RU rack-mount chassis, LC/UPC receptacle, flat top, -5℃~65℃
Specification

Athermal AWG Module, DWDM Module, 75GHz channel spacing, starting wavelength ITU ch-61 1528.77nm,19’’, 1RU, -5C~65C


Parameter

Specification

Units

 Comments



Min

Typ

Max





Number of Channels

64





Channel Spacing

75

GHz



Wavelength Accuracy

-0.05



0.05

nm

BOL

0.5dB Bandwidth

0.15





nm

Flat top

1dB Bandwidth

0.3





nm

Flat top

3dB Bandwidth

0.45





nm

Flat top

20dB Bandwidth





1.2

nm



1st Wavelength

1528.77

nm



Insertion Loss





6.2

dB

Flat top, only include AAWG, BOL, without other part







6.7

dB

Flat top, including COM connector, BOL, with 1/99 MON port



18



22

dB

COM to Mon-in port







29

dB

CHxx to Mon-out port

Insertion Loss Uniformity





1.5

dB



Ripple





0.5

dB

Flat top

Adjacent Channel Isolation

10





dB



Non-Adjacent Channel Isolation

30





dB



Total Isolation

8





dB



PDL





0.7

dB



Return Loss

45





dB

Including connector

Directivity

45





dB



PMD





0.5

ps



Group Delay Ripple

1

ps

Chromatic Dispersion

-20

20

ps/nm

Main Features

lLow Insertion Loss

lHigh Channel Isolation

lWide Pass Band

lLow Polarization Dependent Loss

lHigh Stability and reliability²

lPure passive, No Power or controller requires

lTelcordia GR-1209/1221 Compliant

lRoHS Compliant

Application Scenarios

lDWDM Network

lTelecommunication

lMetropolitan Area Network

lBackbone Network

lAccess Network

lWavelength Routing

lSuitable for indoor and semi-outdoor use

lSupport for connecting G.652C/D fiber types
