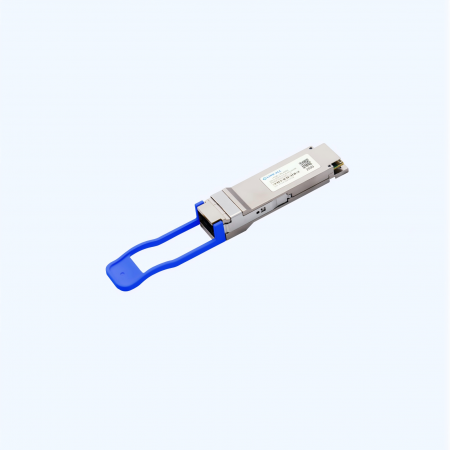

200G 2X100G QSFP-DD 10 km

LAQD-LR4-2x100G

The LAQD-LR4-2x100G is a QSFP-DD Optical transceiver for 2X100Gb/s optical links. It meets the requirements of QSFP-DD MSA, operates from a 3.3V DC power supply and is offered in the commercial temperature range. The module has an aggregate link bandwidth in excess of 200Gb/s by multiplexing of 8 LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 10km on SMF optical fiber. It is fabricated with a rugged diecast metal housing and cage assembly. The device meets the EU Directive 2015/863/EU for RoHS compliance.

Inquire Now

Product Overview

The LAQD-LR4-2x100G is a QSFP-DD Optical transceiver for 2X100Gb/s optical links. It meets the requirements of QSFP-DD MSA, operates from a 3.3V DC power supply and is offered in the commercial temperature
range. The module has an aggregate link bandwidth in excess of 200Gb/s by multiplexing of 8 LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 10km on SMF optical fiber. It is fabricated with a rugged diecast metal housing and cage assembly. The device meets the EU Directive 2015/863/EU for RoHS compliance.

Specification

The details of specification as bellow

Main Features

● 8 independent optical lanes Lane data rate of 25.78Gb/s

● Dual CS optical receptacle, 2x100G LAN-WDM4

● Hot Pluggable

● 10km link on SMF single-mode Fiber

● LAN-WDM Laser/ Pin PD Array Technology

● QSFP-DD MSA Compatible electrical I/O

● Case Operating Temperature:Commercial: 0 to 70ºC

● +3.3V power supply

● RoHS compliance
