25G SFP28 BIDI SFP Module-Shenzhen Link-all Technology Co., Ltd

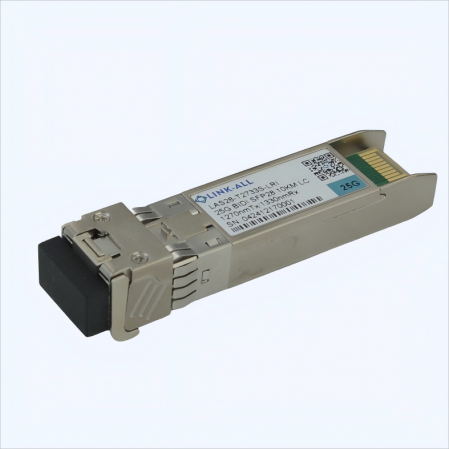

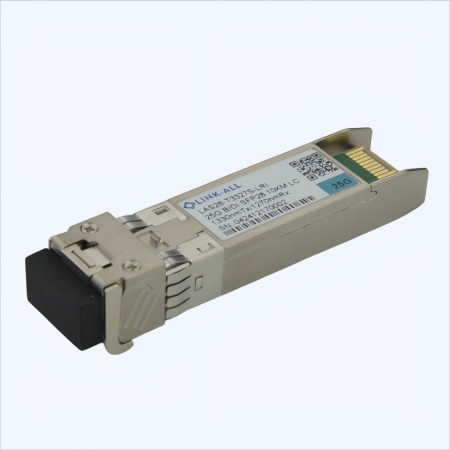

25G SFP28 BIDI SFP Module

The Link-all’s 25G BIDI SFP28 10KM transceivers are high performance, cost effective modules supporting data rate upto 25.78Gbps and high transmission distance with SMF. The transceiver consists of three sections: a DFB-LD laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Inquire Now

Product Overview

The Link-all’s 25G BIDI SFP28 10KM transceivers are high performance, cost effective modules supporting data rate upto 25.78Gbps and high transmission distance with SMF.
The transceiver consists of three sections: a DFB-LD laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Specification

PN	Data Rate (Gbps)	Transmission Distance	Fiber	Receptacle	Temperature	DDM	NOTE
LAS28-T2733(3327)S-LR	25	10KM	SM	Simplex LC	0 to 70℃	√	BIDI
LAS28-T2733(3327)S-20	25	20KM	SM	Simplex LC	0 to 70℃	√	BIDI
LAS28-T2733(3327)S-30	25	30KM	SM	Simplex LC	0 to 70℃	√	BIDI
LAS28-T2733(3327)S-ER	25	40KM	SM	Simplex LC	0 to 70℃	√	BIDI

Main Features

²Supports bit rates up to 25.78Gbps

²SFP28 package with single LC receptacle

²Hot-pluggable capability

²Single 3.3V power supply

²DFB transmitter and high performance PIN receiver

²Up to 10km transmission distance over SMF

²Low power consumption <1.4W

²Compatible with RoHS

²Single +3.3V power supply

²Real Time Digital Diagnostic Monitoring

²Operating case temperature: Industrial: -40 to +85℃

Application Scenarios

²25 Gigabit Ethernet LR

²CPRI/eCPRI
