Items |
Parameters |
|
Ethernet interface |
One Ethernet port Connector: RJ45 Auto-adapt full/half duplex Auto-adapt 10/100/1000M Cable: Cat5e UTP cable or better Both MDI/MDIX available |
|
Optical interface |
Connector: SFP slot or Built-in 1x9 optical module(SC Receptacle Default) Fiber type: MM or SM, Single fiber or Dual fiber Customized according to different distance requirement. |
|
Power supply |
External: 85-265V AC to 5V DC 1A Power adaptor |
|
Dimensions |
External power supply/adapter: 26mm x 70mm x 94mm |
|
Environment |
Working temperature: 0℃~55℃ Storage temperature: -20℃~70℃ Relative humidity: 5~90%, non-condensing |
|
Quality Assurance |
MTBF > 100,000 hours |
In conformity to IEEE 802.3 10 Base-T standard
In conformity to IEEE 802.3u 100 Base-TX, IEEE802.3z, IEEE802.3ab standard
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Automatic identification of MDI/MDI-X cross line
Up to 6 LEDs for status indication
2K MAC address table
1Mbit data storage integrated
Conflicting frames detection in half-duplex and flow control in full duplex supported
Half duplex: back pressure flow control. Full duplex: IEEE802.3x flow control
Transmission Rate: 1000Mbit/s with error rate of zero
In conformity to safety code of FCC and 15 CLASS A and CE MARK

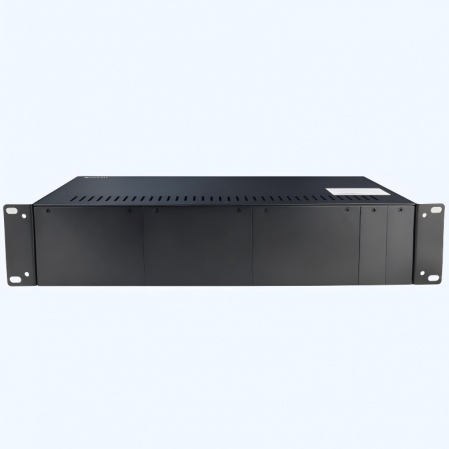

External power supply/adapter type available in corresponding 14-slot chassis
Intranet prepared for expansion from 10M to 1000M
Integrated data network for multimedia such as image, voice and etc

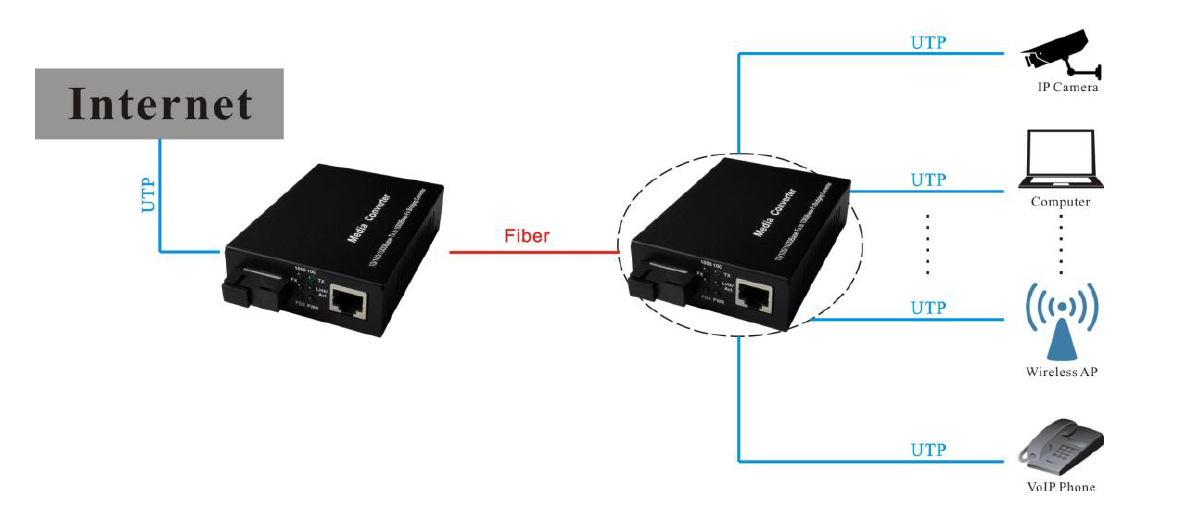

Point-to-point computer data transmission
Computer data transmission network in a wide range of business application
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks
