Items |
Parameters |
|
Data Rate |
Rate of the range from 125Mbps to 1.25Gbps，include 10/100/1000M Ethernet, STM-1/4, FC-1X, OC-3/12 |
|
Maximum Packet Forwarding Rate |
1.488Mpps |
|
Jumbo Frame |
Up to 16KBytes |
|
Interface Type |

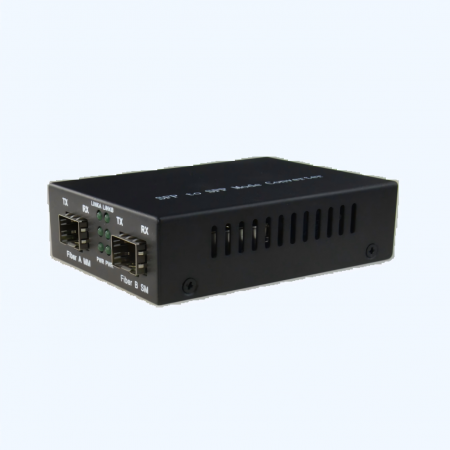

SFP to SFP |
|
Fiber distance |
Depending on the SFP module plugged in |
|
UTP Cable |
Cat 5e (the max distance up to 100m) When using copper SF Pmodule |
|
Power supply |
External: 85-265V AC to 5V DC 1A Power adaptor |
|
Dimensions |
External power supply/adapter: 26mm x 70mm x 94mm |
|
Environment |
Working temperature: 0℃~55℃ Storage temperature: -20℃~70℃ Relative humidity: 5~90%, non-condensing |
|
Quality Assurance |
MTBF > 100,000 hours |
Support Jumbo Frame
Protocol transparency and low latency
Provide connection between fiber to copper or fiber to fiber Gigabit Ethernet equipment
Support ITU-T prescribed DWDM/CWDM wavelength
Support hot-plug
Ultimate in flexibility in using optics and maintain single item inventory
Link status LED on front panel
Easy installation
3R (Re-amplify, Re-shape and Re-clock) based design

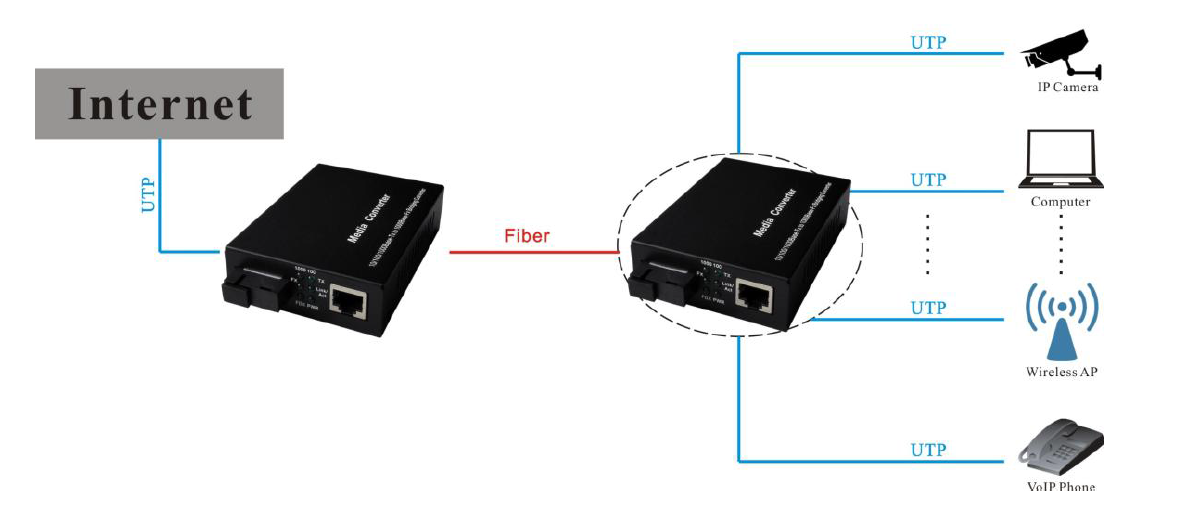

Wide applications - media conversion, signal repeating, wavelength conversion

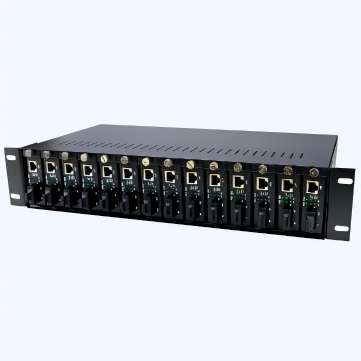

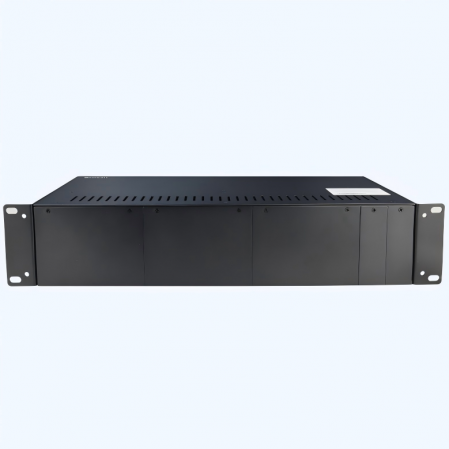

External power supply/adapter type available in corresponding 14-slot chassis
SM and MM interconversion, Wavelength conversion.
Optical signal regeneration and amplification.
Optical signal reshaping.
