Items |
Parameters |
|
Transmission Distance |
Optical interface: SFP+, Distance depend on plug-in Optical Transceiver, such as MM 300m SM 20/40/60/80/120km Ethernet interface: 10G/30m on cat7 cable |
|
Transmission Speed |
1.25G/2.5G/5G/10G |
|
Protocols |
IEEE802.3an(10Gbase-T) IEEE802.3ae (10Gbase-SR/LR/ER/ZR) |
|
Transmission Speed |
10M/100M/1.25G/2.5G/5G/10G |
|
Interface Type |
RJ45 To/From SFP+ |
|
LED Indicatiors |
TP/LNK,SPD,FX/LNK,PWR |
|
DIP Switches |
LFP function, ALS function Working mode switching: Rate following mode/ Rate matching mode |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Environmental Requirement |
Operating Temperature: 0℃~50℃ Storage Temperature: -10℃~70℃ Relative Humidity: 5%~90% (Non-condensation) |
|
Power Supply Specifications and Dimensions |
External Power, AC 100V-240V DC:5V~12V Power Consumption: Full-load<7W |
|
|
Power consumption≤2W (without module) |
|
Mechanical Structure |
Dimensions: 90mm(D)×60mm(W)×20mm(H) Weight: 120g |
|
MTBF |
50,000h |
|
Enclosure |
Metal |
|
Warranty |
1 Year |
|
Emissions |
FCC Class A, CE Class A |
Support Jumbo Frame
Transparent Transport and very low delay
Support ITU-T prescribed DWDM/CWDM wavelength
DIP switch to set different configurations
Supports LFP function, ALS function,Working mode switching
Support hot plugging
Auto-negotiation of Half-Duplex / Full-Duplex Transfer Mode
LEDs Indicate Ethernet and Fiber Link Status at a Glance
Plug-and-play, Support 1U 12 Slots Chassis & Standalone Use
Complies with IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an, IEEE802.3ae, IEEE802.3x
Easy installation

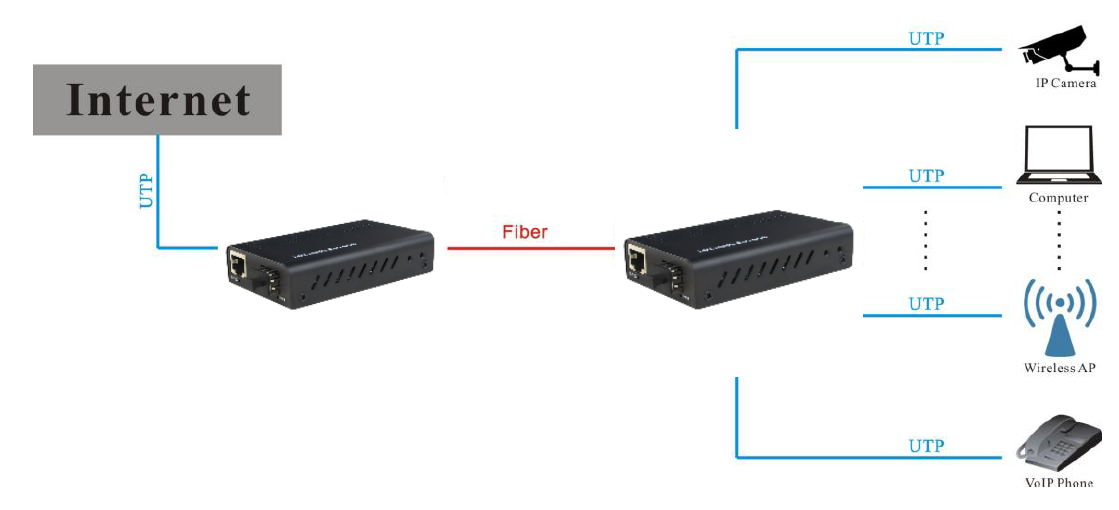

Point-to-point data transmission
LAN extension
WDM application
Security and monitoring - IP camera transmission
Transmission of the wireless access point
