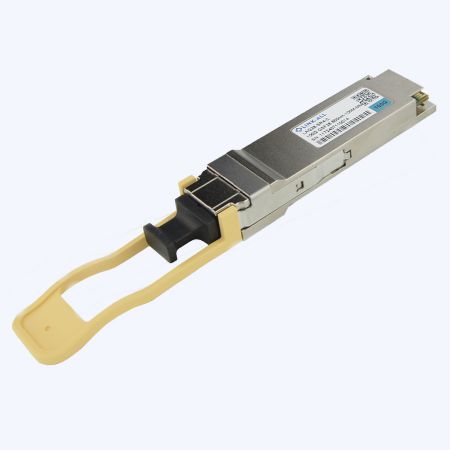

100G SFP-DD

LASD-DR1/FR1/LR1/LR1-20/ER1-30/ER1

The Link-all 100G SFP-DD is designed for using in 100-Gigabit Ethernet links, It is compliant with the SFP56-DD MSA and CAUI-4(no FEC)1 . Digital diagnostics functions are available via the I2C interface, as specified by the SFP56-DD MSA. The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 2 channels of 53Gbps (PAM4) electrical input data to 1 channel of 106Gbps (PAM4) optical signal, and also can convert 1 channel of 106Gbps (PAM4) optical signal to 2 channels of 53Gbps (PAM) electrical output data. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet

Inquire Now

Product Overview

The Link-all 100G SFP-DD is designed for using in 100-Gigabit Ethernet links, It is compliant with the SFP56-DD MSA and CAUI-4(no FEC)1 . Digital diagnostics functions are available via the I2C interface, as specified by the SFP56-DD MSA.
The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 2 channels of 53Gbps (PAM4) electrical input data to 1 channel of 106Gbps (PAM4) optical signal, and also can convert 1 channel of 106Gbps (PAM4) optical signal to 2 channels of 53Gbps (PAM) electrical output data. The optical interface uses a Duplex LC connector. The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet

Specification

PN	Date Rate（Gbps）	Transmission Distance	Fiber	Receptacle	Temperature	DDM
LASD-DR	106.25	500M	SM	Duplex LC	0 to 75℃	√
LASD-FR	106.25	2KM	SM	Duplex LC	0 to 75℃	√
LASD-LR	106.25	10KM	SM	Duplex LC	0 to 75℃	√
LASD-LR1-20	106.25	20KM	SM	Duplex LC	0 to 75℃	√
LASD-ER1-30	106.25	30KM	SM	Duplex LC	0 to 75℃	√
LASD-ER1	106.25	40KM	SM	Duplex LC	0 to 75℃	√

Main Features

lCompliant to 100G Lambda MSA 100G

lFull-duplex transceiver module

l1x106.25Gb/s(PAM4) optical interface

l2x53.125Gb/s(PAM4) electrical interface

l106.25Gbps PAM4 based on a cooled EML TOSA transmitter

l106.25Gbps PAM4 APD Receiver

l3.5W maximum power dissipation

lHot-pluggable SFP56-DD form factor

lMaximum link length of 500m/2km/10km/20km/30km on G.652 SMF with KP-FEC

lDuplex LC receptacles

lBuilt-in digital diagnostic functions

lOperating case temperature range: 0 to 70℃

lSingle 3.3V power supply

lRoHS compliant (lead free)

Application Scenarios

lData Center 100GE 500m SMF links

lSwitch/Router interconnections
