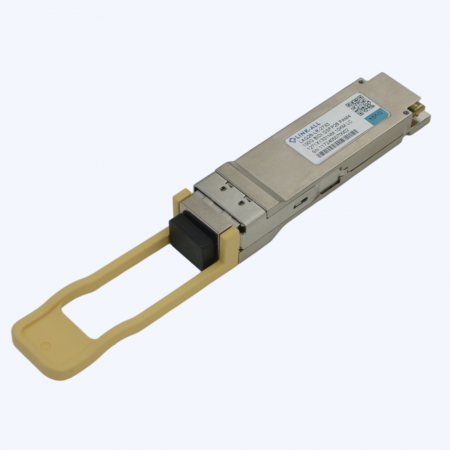

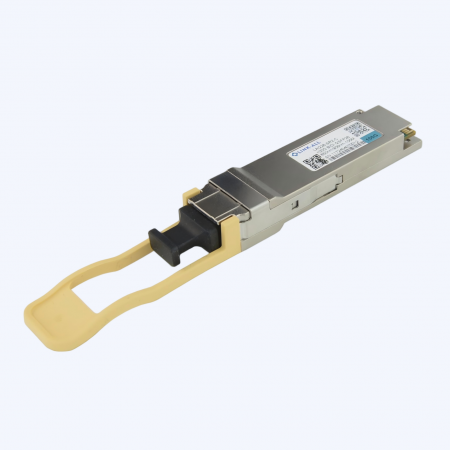

QSFP28 100G BIDI

LAQ28-T2733(3327)S-LR, LAQ28-T2931(3129)S-20,

The LAQ28-LR-xxyy is a low power consumption QSFP28 PAM4 transceiver with high performance up to 100G high speed telecom and data communications over single mode fiber. It operates from a 3.3V DC power supply and is offered in the commercial temperature range. The module has 4 electrical lanes , each capable of transmitting 26.56Gb/s NRZ data, 1 optical lane, capable of 106.25Gb/s PAM4 data over 10km single mode fiber. It is fabricated with a rugged metal housing. The device meets the EU Directive 2015/863/EU for RoHS compliance.

Inquire Now

Product Overview

Specification

PN	Data Rate (Gbps)	Transmission Distance	Fiber	Receptacle	Temperature	DDM
LAQ28-T85(90)-SR2	100	100M	MM	Simplex LC	0 to 70℃	√
LAQ28-T2733(3327)S-LR	100	10KM	SM	Simplex LC	0 to 70℃	√
LAQ28-T2931(3129)S-20	100	20KM	SM	Simplex LC	0 to 70℃	√
LAQ28-T30409(30904)S-30	100	30KM	SM	Simplex LC	0 to 70℃	√
LAQ28-T30409(30904)S-40	100	40KM	SM	Simplex LC	0 to 70℃	√
LAQ28-T30409(30904)S-40E	100	40KM	SM	Simplex LC	-20 to 85°C	√
LAQ28-T2BDA(BDB)S-ZR4	100	80KM	SM	Simplex LC	0 to 70℃	√
LAQ28-4WDM-A(B)-20	100	20KM	SM	Simplex LC	0 to 70℃	√
LAQ28-4WDM-A(B)-20E	100	20KM	SM	Simplex LC	-20 to 85°C	√

Main Features

²QSFP28 Pin assignment compliant

²Hot Pluggable QSFP28 form factor

²10km link on SMF

²Cooled EML transmitter

²Case Operating Temperature:Commercial: 0 to 70ºC

²Digital diagnostic capabilities

²+3.3V power supply

²LC Optical Receptacle

²Dual Wavelength (WDM) Bidirectional Transmission

²RoHS6

Application Scenarios

²100G BASE
